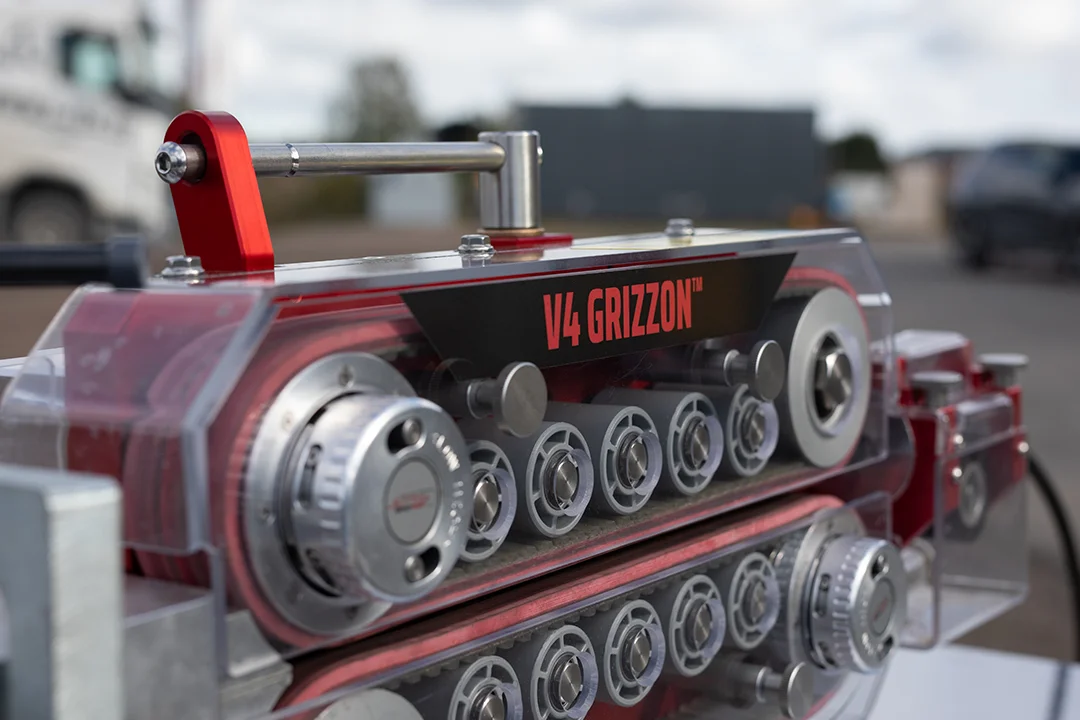

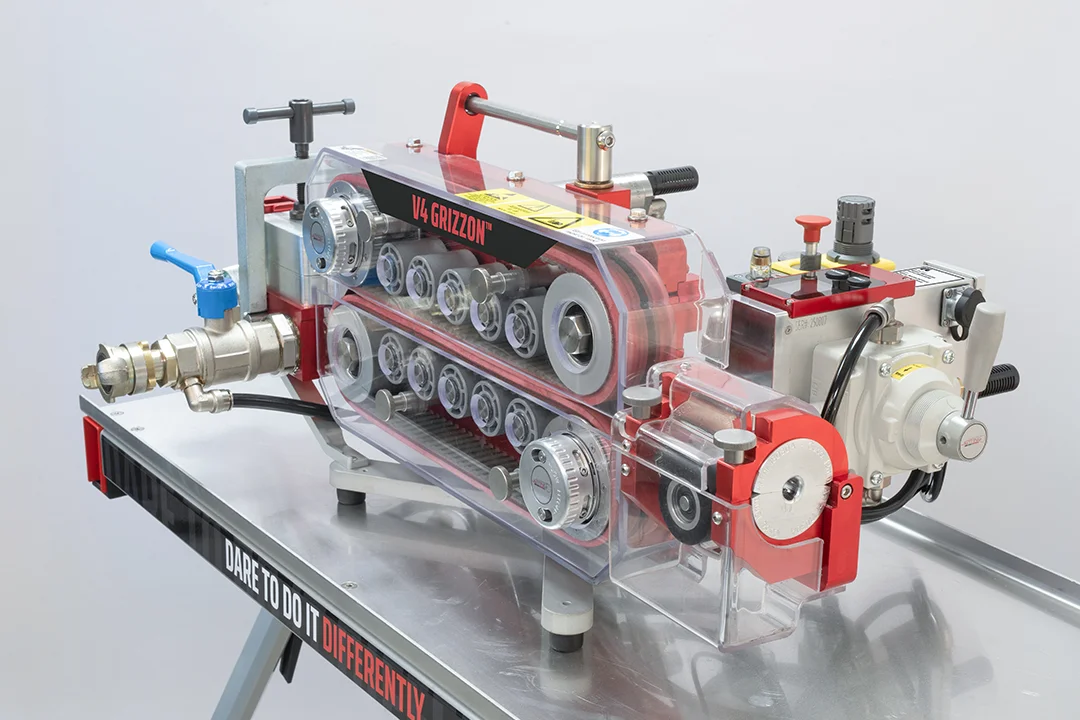

Compact yet extremely powerful, the V4 GRIZZON sets a new benchmark in fiber blowing technology. Its dual-gear system allows switching between maximum installation speed with high pushing force, or massive thrust at lower speeds for tough environments. Lightweight and portable, it supports Floating and Subducting installations and is fully compatible with Jetlogger for real-time monitoring and documentation.
Why V4 GRIZZON?

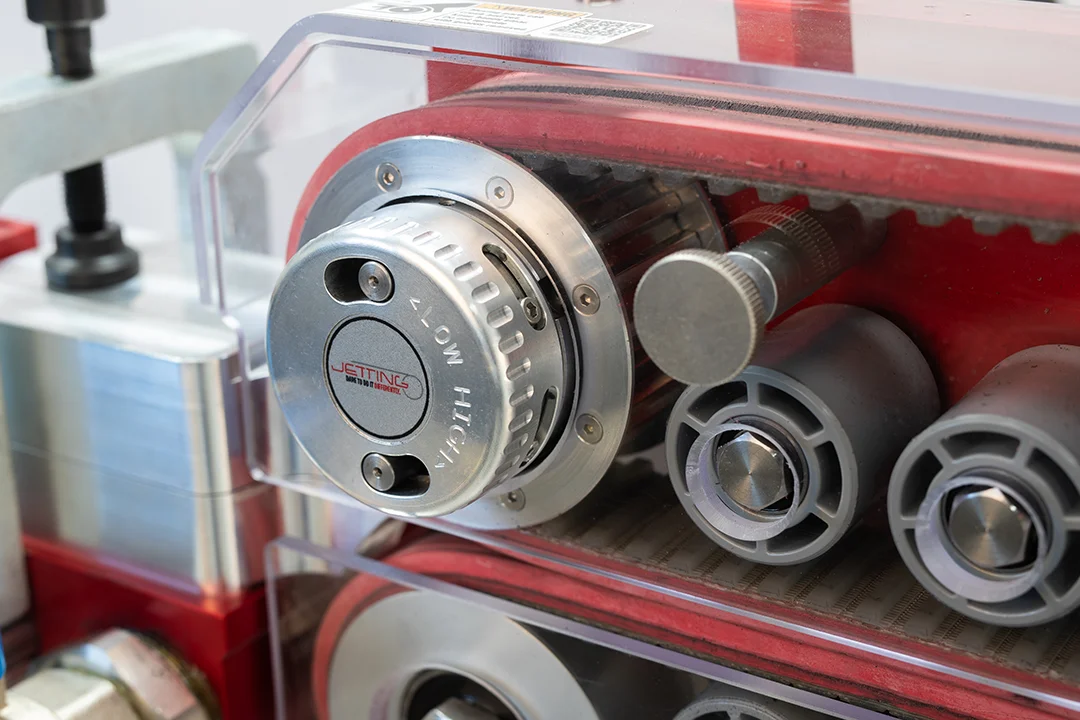

- Dual-gear system (patent pending) to switch between high speed and maximum thrust.
- Pneumatic drive with dual motors for stable performance over long distances.
- Extended roller contact for sheath protection and reduced slippage.

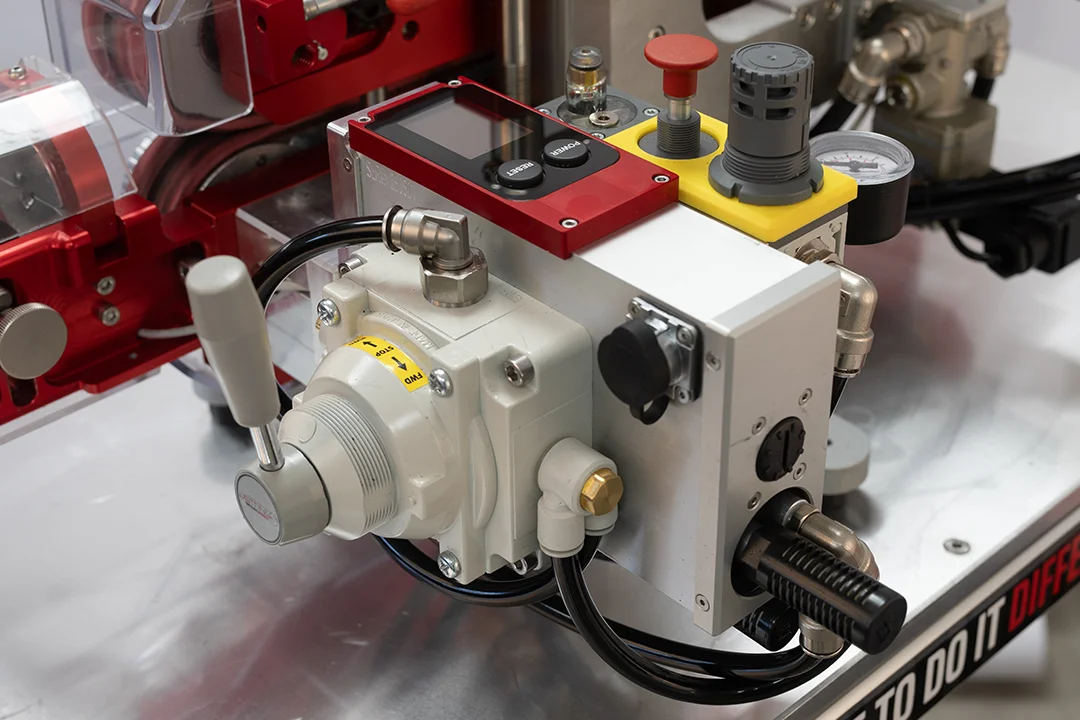

- Joystick controller with forward/reverse and precise speed control.
- Digital display for speed, distance, and pressure monitoring.
- Wide compatibility: cables 4–40 mm and ducts 10–63 mm.
V4 GRIZZON keeps the cable stable during blowing and minimizes splice points by reducing the need for cutting, which accelerates installation and increases reliability even in harsh field conditions.
Technical Specifications
- Min/Max pressure: 10 / 16 bar.
- Maximum speed: 110 m/min.
- Maximum pushing force: up to 2000 N.
- Cable diameter range: 4–40 mm.
- Duct/Tube diameter range: 10–63 mm.
- Weight: 31 kg | Air connection: 1″ Claw coupling.
- Dimensions (W × D × H): 710 × 540 × 340 mm.
Key Features
- High gear with reference speed up to 110 m/min, low gear up to 30 m/min.
- Reference pushing force: 1000 N (high gear), 2000 N (low gear).
- Supports push/pull with Jetting Cart, fully integrated with Jetlogger.

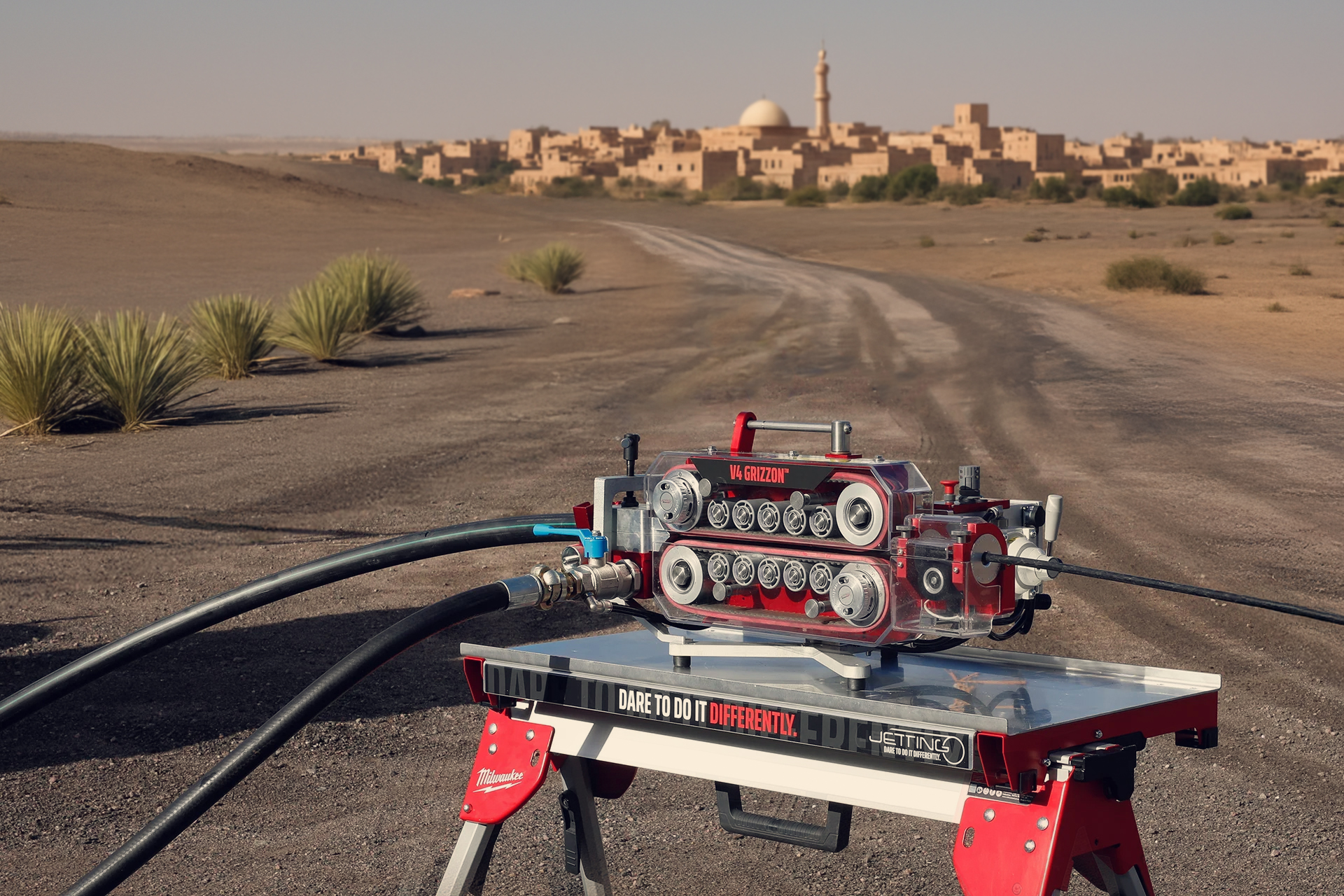

- Microduct options 7×7/3.5 mm or 4×14/10 mm, suitable for desert/harsh conditions.
Standard Configuration (STD)
- Carrying case.
- Additional accessory/attachment.
- Lubricant for microducts + standard ducts.
- Pneumatic oil bottle + service kit.
- Cable guides for 12 mm diameter.
Accessories
- Jetting Cart, workbench, Afterblower.
- Jetlogger, Duct Clamps, cable seals.
- Cable guides for 15/22/26/34 mm, Floating Kit, Subducting Kit.
- Double Claw Pipe Holder.
Air Requirements by Tube Diameter
| Tube Diameter | Airflow | Pressure |
|---|---|---|
| Up to 0.8 mm | 1000 L/min | 10–16 bar |
| 8–10 mm | 1500 L/min | 10–16 bar |
| 12–16 mm | 2000 L/min | 10–16 bar |
| 17–20 mm | 3000 L/min | 10–16 bar |
| 32 mm | 7000 L/min | 10–16 bar |
| 40 mm | 9000 L/min | 10–16 bar |
| 50 mm | 10000 L/min | 10–16 bar |
| 63 mm | 12000 L/min | 10–16 bar |
